# Mounting Encrypted VHD Drives

{% hint style="success" %}
Related Sites:

* [Mounting Bit-Locker Encrypted Drives](https://medium.com/@kartik.sharma522/mounting-bit-locker-encrypted-vhd-files-in-linux-4b3f543251f0)
* [#linux-mount](https://viceintelpro.gitbook.io/viceintelpro/attacking-common-services/interacting-with-common-services#linux-mount "mention")
  {% endhint %}

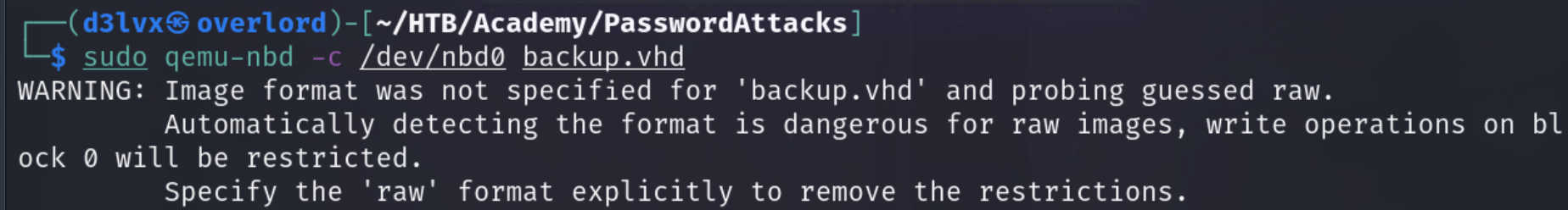

```shell
sudo modprobe nbd
sudo qemu-nbd -c /dev/nbd0 backup.vhd
```

<figure><img src="https://537410186-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH9oYbVb7VAsDxBfUpLeo%2Fuploads%2FnyFeay5e9zJ9OtKa74wf%2Fimage.png?alt=media&#x26;token=a5492679-3c45-4264-b192-09b0c536fd49" alt=""><figcaption></figcaption></figure>

```shell
sudo cryptsetup bitlkOpen /dev/nbd0p2 david
```

<figure><img src="https://537410186-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH9oYbVb7VAsDxBfUpLeo%2Fuploads%2FL3s1UXJVivzhK5AC4be0%2Fimage.png?alt=media&#x26;token=23adfa8f-28ca-429d-bc06-46222de07c62" alt=""><figcaption></figcaption></figure>

Provide the password `123456789!` then we can list out the `/dev/mapper/` directory:

<figure><img src="https://537410186-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH9oYbVb7VAsDxBfUpLeo%2Fuploads%2Fm7hmSgKhGymI9rCFf7ke%2Fimage.png?alt=media&#x26;token=1a4318e1-a3cd-4d2b-a0bd-a690cbed84bc" alt=""><figcaption></figcaption></figure>

```shell
ls  -la /dev/mapper/david
```

<figure><img src="https://537410186-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH9oYbVb7VAsDxBfUpLeo%2Fuploads%2FKlSYkB7wPNzz0uNnQO3g%2Fimage.png?alt=media&#x26;token=a299610d-f3a9-4507-a3ae-aa383f217dce" alt=""><figcaption></figcaption></figure>

Make a directory to mount it into:

```shell
sudo mkdir vhd
```

```shell
$ sudo mount /dev/mapper/david /home/d3lvx/HTB/Academy/PasswordAttacks/vhd
```

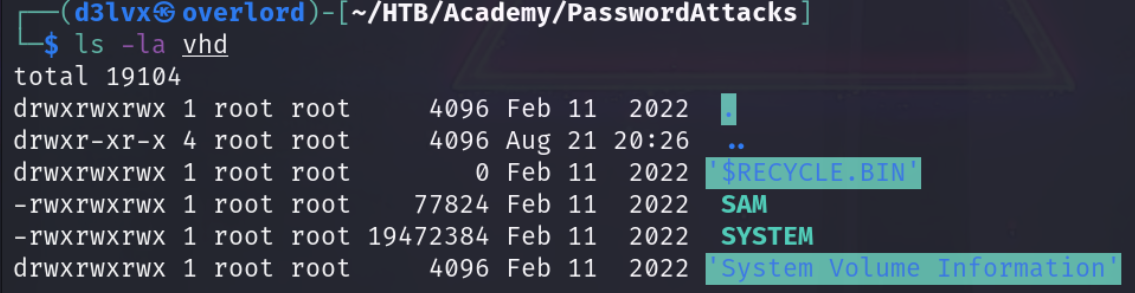

List out the mounted drive:

<figure><img src="https://537410186-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FH9oYbVb7VAsDxBfUpLeo%2Fuploads%2Faf4ubqNTnnYWjWDOF6U1%2Fimage.png?alt=media&#x26;token=0d8f8dc7-811b-4b93-91e3-11c60f4d3848" alt=""><figcaption></figcaption></figure>

We now have VHD mapped out and find backup copies of SAM and SYSTEM and we can use `secretsdump` to dump hashes.

## Unmounting the Drive

```shell
# unmount the vhd directory

$ sudo umount vhd

# Disconnect all nbd devices
$ sudo qemu-nbd -d /dev/nbd0

# Remove the VHD directory we created
$ sudo rmdir vhd

# Remove the module
$ sudo modprobe -r nbd
```

{% hint style="danger" %}
If you are still having issues unmounting, restart the device
{% endhint %}

## From Linked Medium Article: Mounting Bit-locker encrypted vhd files in Linux

Below is the article from this Medium [article](https://medium.com/@kartik.sharma522/mounting-bit-locker-encrypted-vhd-files-in-linux-4b3f543251f0):&#x20;

BitLocker is a full volume encryption feature included with Windows with natively uses AES 128bit or 256bit keys. It stores is the keys on the TPM.

On the other hand Linux distros provide encryption based on LUKS (Linux Unified Key Setup) which doesn’t depend on TPM in any way. LUKS encrypts the full drive including the partition header and BitLocker only acts on partition level. From Cryptsetup version 2.3.0 onward BitLocker encryption format is supported.

So following packages are required on the Linux distro of your choice: -

1. `qemu-img` (in RHEL, Fedora)/ `qemu-utils` (in Debian)
2. `crytpsetup` with minimum version of 2.3
3. `ntfs-3g-devel` (in RHEL, Fedora)/ `ntfs-3g-dev` (in Debian) (optional) needed only in case the NTFS volume is unclean

Once we have the packages ready, we can start by inserting the nbd modules in the kernel

```
$ modprobe nbd
```

After that we can have mount the vhd or vhdx file as follows.

```
$ qemu-nbd -c /dev/nbd0 <PATH_TO_FILE>.vhd
```

If mounting multiple vhd files we need to increment the `/dev/nbd0` to `/dev/nbd1` and so on. After running this our vhd files is mounted under `/dev/nbd0` . We need to do a `$ lsblk` to identify exactly which partition is the Bitlocker encrypted partition (size of partition is useful for distinguishing). In my case the partition is `/dev/nbd0p2` the second partition on the disk. We need to run Cryptsetup and provide a label for mounting the Bitlocker partition

```
$ cryptsetup bitlkOpen /dev/nbd0p2 my_label
```

Now my partition is visible as `/dev/mapper/my_label` . It can be mounted normally now.

```
$ mkdir /mnt/mydrive
$ mount /dev/mapper/my_label /mnt/mydrive
```

If we have NTFS related problems in the drive we can run `ntfsfix` before mounting the drive to fix the issues

```
$ ntfsfix -b -d /dev/mapper/my_label
```

To close the BitLocker partition properly we need to first `umount` then use `cryptsetup bitlkClose` for closing the partition

```
$ umount /mnt/mydrive
$ cryptsetup bitlkClose my_label
```
